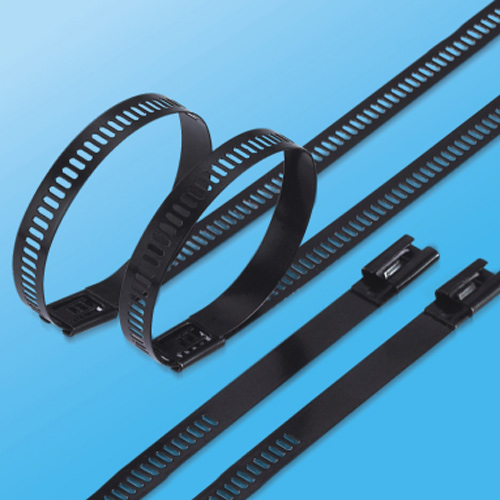

Ladder Multi Barb Lock PVC Coated

 Ladder Multi Barb Lock PVC Coated Stainless Steel Cable Ties
 Ladder Multi Barb Lock PVC Coated Stainless Steel Cable Ties

Product introduction

Material:

Stainless steel grade: 304,316, all lengths are available, special sizes can be customized.

Features:

Corrosion resistance, multi-barb lock, tension resistance up to 250lbs.

Application: Indoor and outdoor, suitable for telecommunication, electric power, shipbuilding and oil pipeline projects.

Working temperature :-40℃~85℃

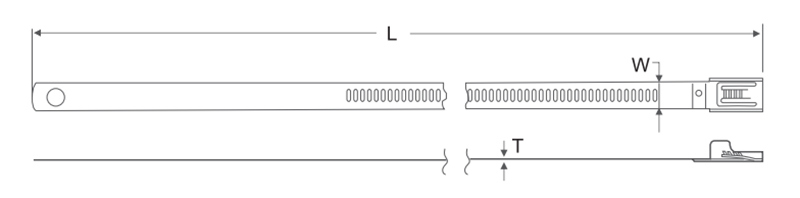

Part No.

Approx. Length
mm(inch)

Approx. Width
mm(inch)

Max. Bundle Dia
mm(inch)

Min. loop Tensile
Strength N(lbs)

NKDP-7×150

150(5.9)

7(0.276)

33(1.3)

1120(252)

NKDP-7×225

225(8.86)

57(2.2)

NKDP-7×300

300(11.8)

81(3.2)

NKDP-7×335

335(13.2)

92(3.6)

NKDP-7×400

400(15.75)

113(4.4)

NKDP-7×450

450(17.7)

129(5.1)

NKDP-7×490

490(19.3)

141(5.6)

NKDP-7×550

550(21.65)

161(6.3)

NKDP-7×600

600(23.62)

176(6.9)

NKDP-7×650

650(25.59)

192(7.6)

NKDP-7×700

700(27.56)

208(8.2)

NKDP-7×750

750(29.53)

224(8.8)

NKDP-7×800

800(31.5)

240(9.4)

NKDP-12×150

150(5.9)

12(0.472)

33(1.3)

1800(405)

NKDP-12×225

225(8.86)

57(2.2)

NKDP-12×300

300(11.8)

81(3.2)

NKDP-12×335

335(13.2)

92(3.6)

NKDP-12×400

400(15.75)

113(4.4)

NKDP-12×450

450(17.7)

129(5.1)

NKDP-12×490

490(19.3)

141(5.6)

NKDP-12×550

550(21.65)

161(6.3)

NKDP-12×600

600(23.62)

176(6.9)

NKDP-12×650

650(25.59)

192(7.6)

NKDP-12×700

700(27.56)

208(8.2)

NKDP-12×750

750(29.53)

224(8.8)

NKDP-12×800

800(31.5)

240(9.4)
