Material:

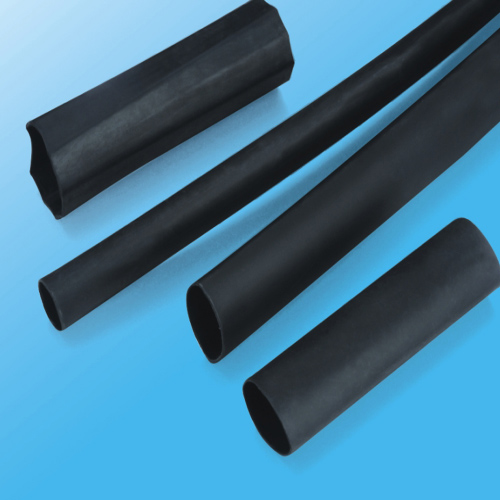

Heat-shrinkable tube (with adhesive) is made by means of compound processing adoption high quality and soft crosslinked polyolefin material outside, and using hot-melt adhesive inside.
Features:
The outer layer of material has advantages of insulation,corrosion proof, abrasion proof ,etc.
Application:
The products are widely applied to waterproof and air leakage resistance of wiring for electronic equipment, also are applicable for the corrosion proof at wire branch part, repair of wires and cables,water-proof of wiring for water pumps and submersible pumps,etc.
Shrinkage ratio, 3:1
Working temperature: -40°C -125°C
|
Specification mm |
Inner Diameter After Shrunk mm |
After Shrinkage |
Packing |
||
|
1.D mm |
Thickness |
Thickness |
|||
|
φ2.4 |
≥2.4 |
0.8 |
0.30±0.08 |
0.30±0.06 |
200m |
|
φ3.2 |
≥3.2 |
1 |
0.96±0.05 |
0.95±0.08 |
200m |
|
φ4.8 |
≥4.8 |
1.6 |
1.10±0.05 |
0.40±0.08 |
100m |
|
φ6.4 |
≥6.4 |
2.2 |
1.35±0.05 |
0.45±0.08 |
100m |
|
φ7.9 |
≥7.9 |
2.7 |
1.45±0.05 |
0.50±0.08 |
100m |
|
φ9.5 |
≥9.5 |
3.2 |
1.70±0.05 |
0.50±0.08 |
50m |
|
φ12.7 |
≥12.7 |
4.2 |
1.80±0.05 |
0.60±0.08 |
1.22m |
|
φ15.0 |
≥15.0 |
5.2 |
2.00±0.08 |
0.55±0.10 |
1.22m |
|
φ19.1 |
≥19.1 |
6.3 |
2.10±0.08 |
0.55±0.10 |
1.22m |
|
φ25.4 |
≥25.4 |
8.5 |
2.20±0.08 |
0.55±0.10 |
1.22m |
|
φ28.0 |
≥28.0 |
9.4 |
2.20±0.08 |
0.55±0.10 |
1.22m |
|
φ30.0 |
≥30.0 |
10.2 |
2.30±0.08 |
0.60±0.10 |
1.22m |
|
φ35.0 |
≥35.0 |
11.5 |
2.40±0.08 |
0.60±0.10 |
1.22m |
|
φ40.0 |
≥40.0 |
13.5 |
2.70±0.08 |
0.50±0.10 |
1.22m |
|
φ50.0 |
≥50.0 |
17 |
3.0±0.08 |
0.70±0.10 |
1.22m |
|
φ60.0 |
≥60.0 |
21 |
3.2±0.08 |
0.70±0.10 |
1.22m |
|
φ70.0 |
≥70.0 |
23 |
3.5±0.08 |
0.90±0.10 |
1.22m |
|
φ80.0 |
≥80.0 |
26.5 |
3.5±0.08 |
1.00±0.10 |
1.22m |
|
φ90.0 |
≥90.0 |
30 |
3.5±0.08 |
1.10±0.10 |
1.22m |
|
φ100 |
≥100 |
33.3 |
3.5±0.08 |
1.20±0.10 |
1.22m |
|
φ120 |
≥120 |
40 |
3.5±0.08 |
1.20±0.10 |
1.22m |
|
φ150 |
≥150 |
50 |
3.5±0.08 |
1.20±0.10 |
1.22m |
