Ring Type

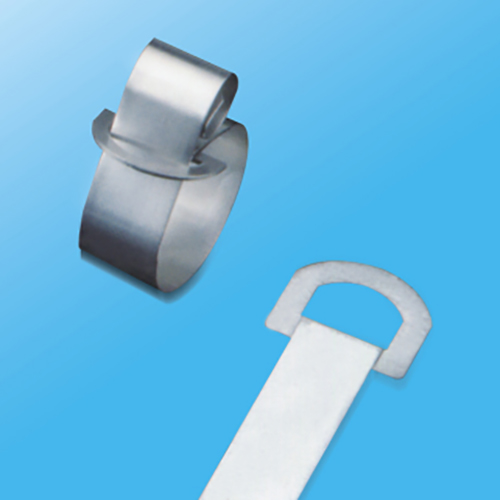

Ring Type Stainless Steel Cable Ties
Ring Type Stainless Steel Cable Ties

Product introduction

Material:

Stainless steel grade: 201,304,316, all lengths are available, apecial sizes can be customized.

Features: acid resistance, corrosion resistance, non-flammable, high tensile strength, D-type cable tie is simple to use, fast, etc.

Working temperature:-40℃-1300℃

Part No.

Approx. Length
mm(inch)

Approx. Width
mm(inch)

Max. Bundle Dia
mm(inch)

Min. loop Tensile
Strength N(lbs)

NKDT-10×150

150(5.9)

10(0.39)

37(1.46)

1200(270)

NKDT-10×200

200(7.87)

50(1.97)

NKDT-10×250

250(9.84)

63(2.48)

NKDT-10×300

300(11.8)

76(2.99)

NKDT-10×350

350(13.78)

89(3.5)

NKDT-10×400

400(15.75)

102(4.02)

NKDT-10×450

450(17.72)

115(4.53)

NKDT-10×500

500(19.69)

128(5.04)

NKDT-10×550

550(21.65)

141(5.55)

NKDT-10×600

600(23.62)

154(6.06)

NKDT-10×650

650(25.59)

167(6.57)

NKDT-12×150

150(5.9)

12(0.47)

37(1.46)

1200(270)

NKDT-12×200

200(7.87)

50(1.97)

NKDT-12×250

250(9.84)

63(2.48)

NKDT-12×300

300(11.8)

76(2.99)

NKDT-12×350

350(13.78)

89(3.5)

NKDT-12×400

400(15.75)

102(4.02)

NKDT-12×450

450(17.72)

115(4.53)

NKDT-12×500

500(19.69)

128(5.04)

NKDT-12×550

550(21.65)

141(5.55)

NKDT-12×600

600(23.62)

154(6.06)

NKDT-12×650

650(25.59)

167(6.57)

NKDT-12×700

700(27.6)

180(7.09)

NKDT-12×800

800(31.5)

193(7.59)

NKDT-16×150

150(5.9)

16(0.630)

37(1.46)

1200(270)

NKDT-16×200

200(7.87)

50(1.97)

NKDT-16×250

250(9.84)

63(2.48)

NKDT-16×300

300(11.8)

76(2.99)

NKDT-16×350

350(13.78)

89(3.5)

NKDT-16×400

400(15.75)

102(4.02)

NKDT-16×450

450(17.72)

115(4.53)

NKDT-16×500

500(19.69)

128(5.04)

NKDT-16×550

550(21.65)

141(5.55)

NKDT-16×600

600(23.62)

154(6.06)

NKDT-16×650

650(25.59)

167(6.57)

NKDT-16×700

700(27.6)

180(7.09)

NKDT-16×800

800(31.5)

193(7.59)
